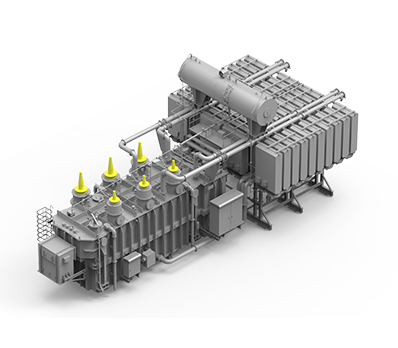

Power Transformer

Since 1969, when Hyosung Heavy Industries developed the 154kV transformer for the first time in South Korea, it has been manufacturing and operating ultra-high-voltage transformers up to 765kV. Hyosung Heavy Industries supplies a wide range of transformers up to 765kV and 1500MVA, both with core form and shell form technology. As a result, the company has the capacity to offer a wide range of solutions to customers, with extensive project experience in over 70 countries around the world and supplying over 6000 units of power transformers from Changwon, Korea alone. In fact, we are a global transformer brand, with the capacity to satisfy standards of each country and international standards, such as IEC, ANSI, IEEE, NEMA, BS, JIS, JEC, etc.

Features and Benefits

Ultra-high-voltage Technology: Hyosung Heavy Industries was the first to develop the 765kV transformer in Asia, and it is a leading supplier in North America, South America, and Asia.
Robust Technology: Our engineering team is one of the largest in the world, with over half a century of experience, and prides itself on its technology of superior thermal, dielectric strength, and mechanical strength under seismic, short-circuit, and various transportation conditions.
Sophisticated Technology: We satisfied the varied needs of customers in over 70 countries, and we offer sophisticated customization tailored to even extreme operation conditions, such as deserts, seismic regions, and highly corrosive atmosphere.
Green Technology: We offer optimized environmentally friendly solutions through low-loss technology, low-noise technology, and alternative material such as ester insulation oil.
Smooth Project Execution: We have professional transportation and installation capabilities around the world. With in-house turn-key project capabilities and competitive lead times.

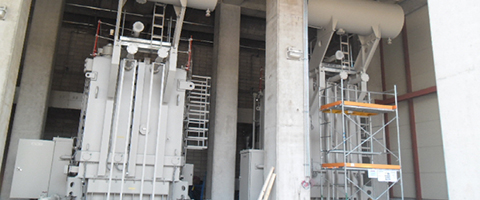

Applications

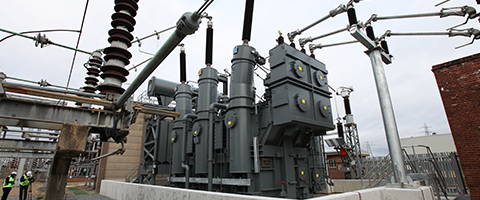

Substation

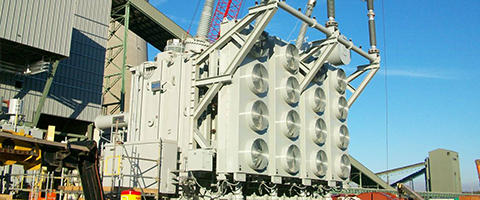

Conventional power plants

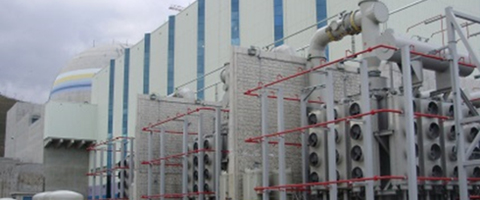

Nuclear power plants

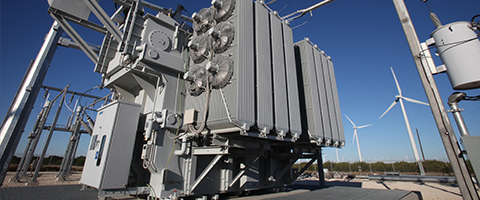

Renewable energy plants

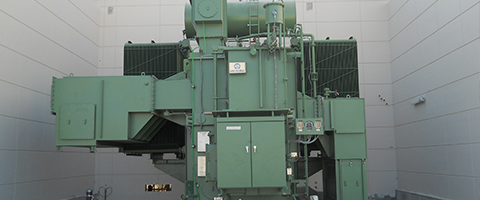

Water treatment plants

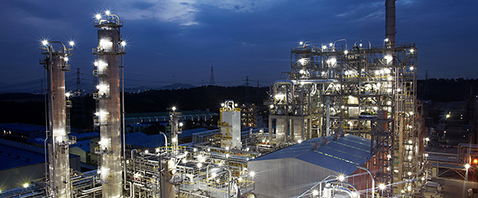

Oil & gas facilities

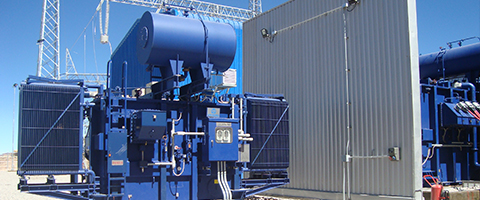

Mining and steel plants
Industrial plants

Reference

Main Delivery Countries

Key Delivery Performance

South Korea, Transformer for Transmission Substations,1ph 666.7MVA 765/345/23kV
South Korea, Transformer for Nuclear Power Plants, 1ph 395MVA 765/20.9kV
United States, Transformer for Transmission Substations, 1ph 750MVA 765/345/34.5kV
United States, Transformer for Thermal Power Plants, 3ph 990MVA 345/24kV
United States, Transformer for Wind Farms 3ph 230MVA, 138/34.5kV
Peru, Transformer for Transmission Substations, 3ph 600MVA 500/220/33kV
United Kingdom, Transformer for Transmission Substations, 3ph 1100MVA 400/275kV
France, Transformer for Hydroelectric Power Plants, 3ph 290MVA 400/13kV
Thailand, Transformer for Thermal Power Plants, 3ph 875MVA 245/23kV
Vietnam, Transformer for Thermal Power Plants, 3ph 720MVA 525/23kV
India, Transformer for Transmission Substations, 1ph 500MVA 765/400kV
Saudi Arabia, Transformer for Transmission Substations, 3ph 502MVA 380/132kV

Download

Power Transformer Catalog
