Condition monitoring system(Hi CMS)

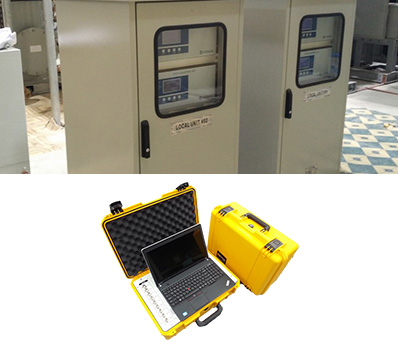

This condition monitoring system measures abnormal signals through several sensors installed on the electric power apparatus, which diagnose the exact status of target equipment. By preventing the unexpected failure of critical power equipment, this solution contributes to the stable its operation and improves the transmission network reliability.

Features and Benefits

High sensitivity: Achieves excellent measurement sensitivity based on highly sensitive sensor implementation and outstanding RF circuit design technology
High analysis reliability and system stability: Provides reliable analysis results and risk assessment function based on self-developed algorithm; Improves operation and diagnosis reliability by implementing background noise reduction techniques and new location estimation algorithm; Ensures site reliability by implementing reliable protection circuitry to reduce field surge effect
Various delivery track records: Trusted by our valuable customers after successful supply and operation in more than 300 projects in 13 countries
Continuous quality innovation: Constantly developing new innovative products based on high technology and know-how as an electric power equipment manufacturer

Product Types and Specifications

Condition monitoring system for GIS

GM-400: Portable PD measuring device for GIS
GM-4000: Online UHF PD monitoring system for GIS
GM-3000: Online total monitoring system for GIS including UHF PD, SF6 gas density, CB mechanism operating characteristic, and lightning arrester degradation monitoring

Condition monitoring system for GIS
Model		GM-400	GM-3000	GM-4000
Monitoring method		Portable	On-line	On-line
UHF PD	Cause Analysis	O	O	O
	Operating alarm		O	O
	Trend analysis		O	O
	Position estimation		O	O
	Risk identification		O	O
GD			O
CB			O
LA			O
DGA	Risk assessment
	Operating alarm
	Trend analysis
Temperature monitoring

Condition monitoring system for GIS

Condition monitoring system for transformers

TM-100 : Portable PD measuring device for transformers
TM-1000 : On-line UHF PD monitoring system for transformers
TM-2000 : On-line Total monitoring system for transformers including UHF PD, DGA, Hot spot temperature, OLTC monitoring etc

Condition monitoring system for transformers
Model		TM-100	TM-1000	TM-2000
Monitoring method		Portable	On-line	On-line
UHF PD	Cause Analysis	O	O	O
	Operating alarm	O	O	O
	Trend analysis		O	O
	Position estimation	O	O	O
	Risk identification
GD
CB
LA
DGA	Risk assessment			O
	Operating alarm			O
	Trend analysis			O
Temperature monitoring				O

Condition monitoring system for transformers

Reference

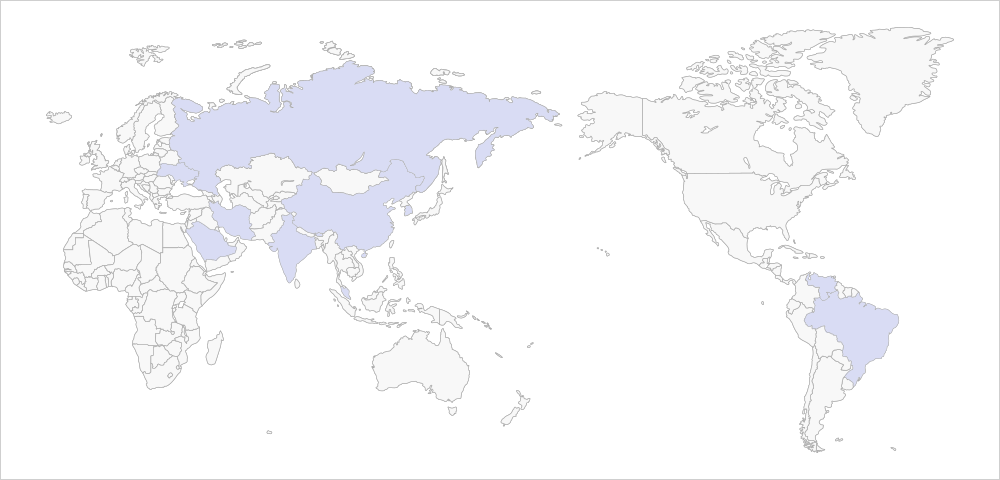

Main Delivery Countries

Key Delivery Performance

Online GIS PDM for Samsung Electronics’ Giheung and Hwasung Campuses
Online & Portable GIS PDM for India’s Power Grid Corporation of India Limited (PGCIL) and Local Electricity Bureaus (Tantransco, KPTCL, NUPPL, GETCO, etc.)
Online & Portable GIS PDM for Saudi Arabia’s Nation Grid
Malaysian Electricity Bureau (TNB)
Egyptian Electricity Bureau (EETC)
Algerian Electricity Bureau (Sonelgaz)
Brazilian Electricity Company (ESBR), etc.
South Korea Online Transformer PDM for Samsung Display

Download

Condition monitoring system(Hi CMS) Catalog
