Chemical

We have localized the electronic materials industry with our advanced technology

Optical Film

opticalfilm

Optical Film PU independently develops and produces tri-acetyl cellulose (TAC) film, which protects the PVA polarizing film inside LCD polarizers fitted into TVs, monitors, laptops, etc. Since establishing a plant in Ulsan, we have been producing TAC film for LCDs there, which is unprecedented in South Korea. In addition, due to our TAC plant 2, which was established in Oksan in 2013, we now boast an annual production capacity of 110 million square meters. We are increasing the sales of our products by entering the Chinese market, which recently emerged as the largest display market in the world. Moreover, in keeping with technological developments in the electronic materials industry, we are also developing new films based on TAC film technology and expanding into various optical film markets.

Characteristics

  • Regulatory requirements for environmentally hazardous substances satisfied EU REACH Halogen FreeRoHS
  • Durability No TAC acid decomposition under high temperature, high humidity conditions Nongeneration of crystal mura
  • Smoothness Excellent TAC surface uniformity Excellent surface treatment coating properties

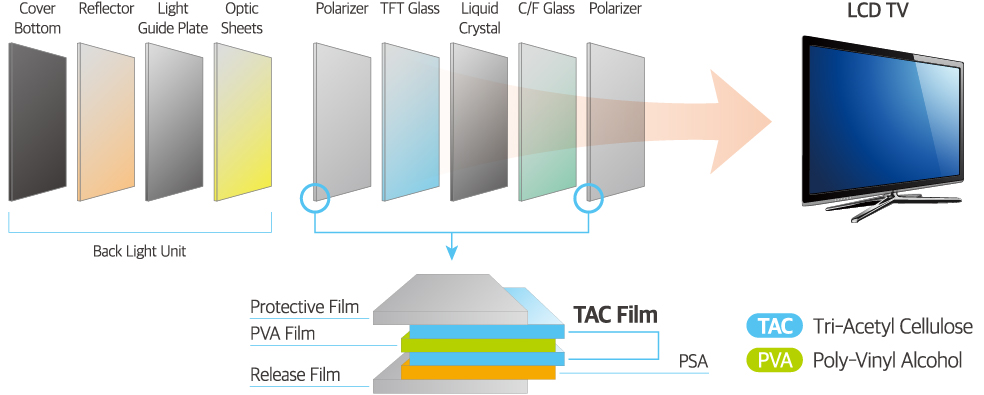

Overview of TAC film for LCDs

Overview of TAC film for LCDs

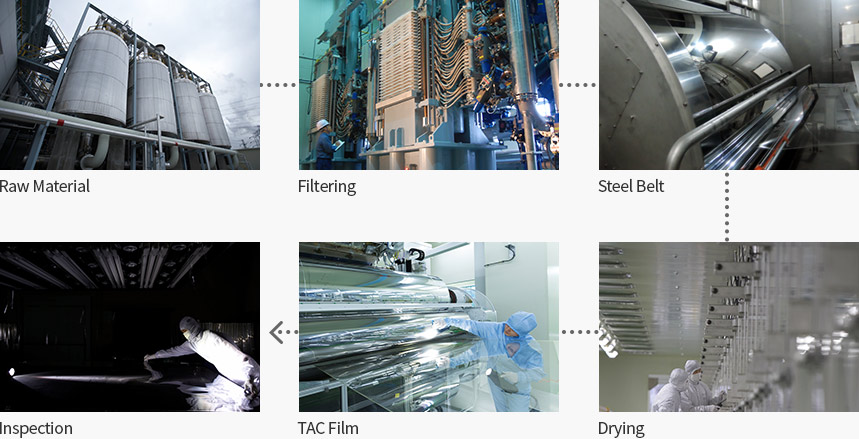

TAC film process flowchart

TAC Film process flow - 1.Raw Material 2.Filtering 3.Steel Belt 4.Drying 5.Inspection 6.TAC Film

Plants and equipment

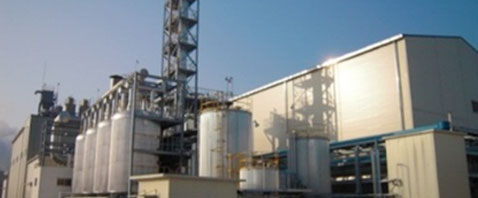

  •  Yongyeon Plant TAC Film Unit 1
    Plants and equipment - Location, Product, Thickness, Full width, CAPA로 구성
    Location Yongyeon Plant TAC Film Unit 1
    Product TAC Film
    Thickness 80㎛, 60㎛, 40㎛
    Full width 1330mm~1500mm
    CAPA 50,000K㎡/year

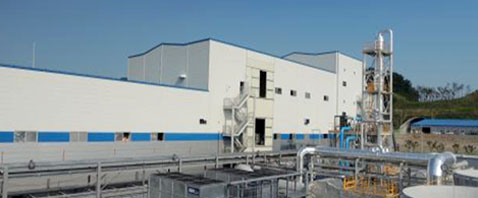

  • 옥산공장 TAC Film 2호기
    Plants and equipment - Location, Product, Thickness, Full width, CAPA로 구성
    Location Oksan Plant TAC Film Unit 2
    Product TAC Film
    Thickness 60㎛, 40㎛
    Full width 1910mm~2260mm
    CAPA 60,000K㎡/year
